Enhancing Structural
Design with HSS Tools

HSS CONNEX

STI’s HSS Connex is a free web-based tool that offers designers a simple way to check HSS wall thicknesses to aid in efficient HSS connection design. This tool helps to ensure HSS wall thicknesses are adequate at connections without needing to go through the full connection design.

Access tool for free

CAPABILITY TOOL

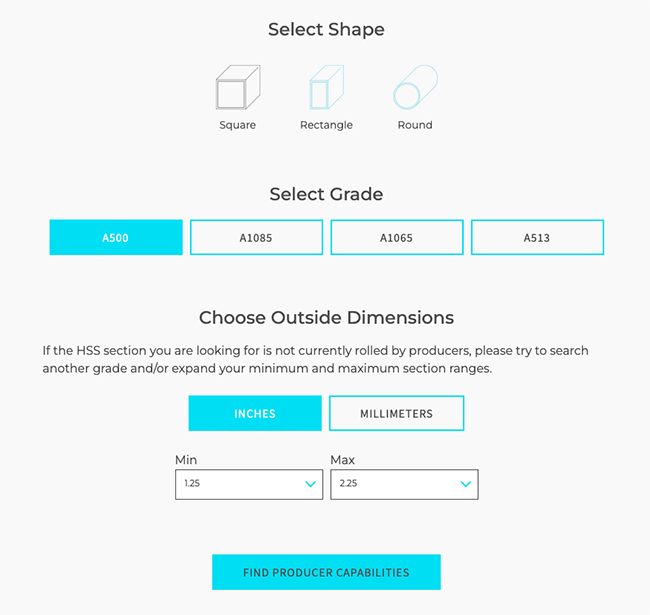

Looking for a particular HSS size? Our HSS Capability Tool lets you search by HSS shape, dimensions and grade to help you find the availability for the HSS section you need for your project. Sizes include:

• Rounds 0.84″ to 28″
• Squares 1″ to 50″
• Rectangles 1.5″x1″” to 60″”x48″

Search your HSS sizes

SPREADSHEET DESIGN AIDS

STI’s HSS connection design aids for truss, shear and moment connections calculate the available connection strength per the AISC 360-22 Specification, including pertinent limit state calculations and corresponding limits of applicability checks. These spreadsheets are available with the HSS Professional Membership.

Download spreadsheets

EFFECTIVE WELD LENGTH CALCULATOR

Calculate the effective weld properties for connections to HSS chords, accounting for the nonuniform loading of the branch weld perimeter on the chord face. Supported connection types include:

• Transverse Plate T- and Cross-connections with branch axial load
• Rectangular HSS T-, Y-, and Cross-connections with branch axial or moment load
• Round HSS T-, Y-, and Cross-connections with branch axial load
• Gapped K-connections with branch axial load
• Overlapped K-connections with branch axial load

Start your calculations
